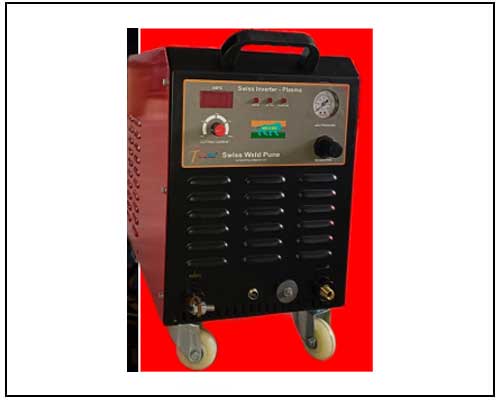

SWISS CUT 100i
SWISSWELD SWISS CUT 100i PLASMA CUTTING MACHINESWISS CUT 100i is an IGBT based inverter Cutting Power Source.
- Digital Ammeter
- Individual Knobs for easy parameter setting
- Air Pressure Gauge
Specifications / Technical Data
| Model | SWISS CUT 100i |
|---|---|
| Voltage (V) | 3Ph-415V±10% |
| Frequency (Hz) | 50/60 |
| Input Capacitor (KVA) | 15.7 |
| Input Current (A) | 24 |
| Power Factor | 0.91 |
| Output no Load Voltage (V) | 320 |
| Duty Cycle (%) | 60 |
| Output Current Range (A) | 25-100 |
| Cutting Thickness (Fine/Ruff) | 20mm / 30mm |
| Weight (KGS) | 35 |
| Cooling | Air |
