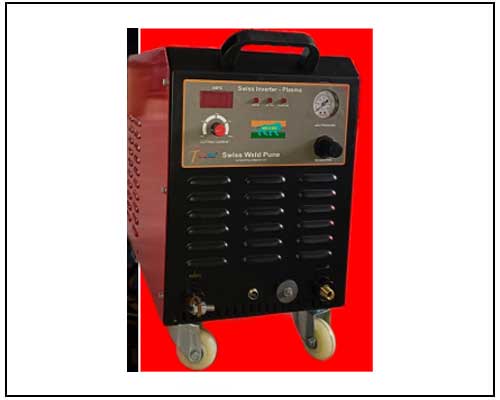

SWISS CUT 120i
SWISSWELD SWISS CUT 120i PLASMA CUTTING MACHINESWISS CUT 120i is an IGBT based inverter Cutting Power Source.
- Digital Ammeter
- Individual Knobs for easy parameter setting
- Air Pressure Gauge
Specifications / Technical Data
| Feature | Value |
|---|---|
| Model | SWISS CUT 120i |
| Voltage (V) | 3Ph-415V±10% |
| Frequency (Hz) | 50/60 |
| Input Capacitor (KVA) | 24 |
| Input Current (A) | 36 |
| Power Factor | 0.86 |
| Output no Load Voltage (V) | 320 |
| Duty Cycle (%) | 100 |
| Output Current Range (A) | 25-120 |
| Cutting Thickness (Fine/Ruff) | 25mm / 35mm |
| Weight (KGS) | 40 |
| Cooling | Air |
