SWISS PULSE TIG 400

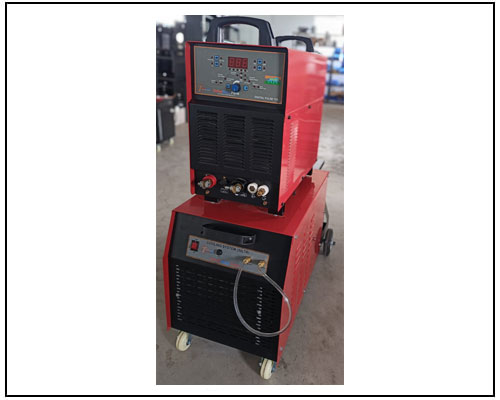

SWISSWELD SWISS PULSE TIG 400 WITH WATER COOLING UNITSWISS PULSE TIG 400 is an IGBT based inverter welding power source with in-built HF unit,cooling unit and water cooling torch for continuous welding applications.
- Digital Voltmeter & Ammeter
- Digital Display & Digital parameter settings
- In-built trolley with cooling unit & cylinder mount
- Spot welding
- Pulse welding
Specifications / Technical Data
| Model | SWISS PULSE TIG 400 |
| Mains Supply | 3Ph-415V±15%50/60Hz |
| Current at 60% | 400AMPS |
| Current at 100% | 310AMPS |
| Power Factor | 0.93 |
| Efficiency at Maximum Current | 85% |
| Current Range for TIG/MMA | 20-400 / 25-350 A |
| Open Circuit Voltage (OCV) | 75 V |
| Dimensions (WxLxH) | 880x400x950 |
| Weight | 42 Kgs |
| Cooling | Water |
| Tanks Capacity | 50 Ltrs |
| Pump Power | 0.5 HP |
