SWISS CUT 200i

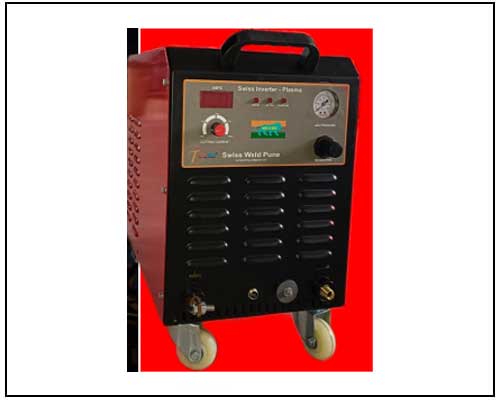

SWISSWELD SWISS CUT 200i PLASMA CUTTING MACHINESWISS CUT 200i is an IGBT based inverter Cutting Power Source.
- Digital Ammeter
- Individual Knobs for easy parameter setting
- Air Pressure Gauge
Specifications / Technical Data
| Model | SWISS CUT 200i |
| Voltage (V) | 3Ph-415V±10% |
| Frequency (Hz) | 50/60 |
| Input Capacitor (KVA) | 45 |
| Input Current (A) | 68 |
| Power Factor | 0.89 |
| Output no Load Voltage (V) | 330 |
| Duty Cycle (%) | 100 |
| Output Current Range (A) | 30-200 |
| Cutting Thickness (Fine/Ruff) | 45mm / 70mm |
| Weight (KGS) | 75 |
| Cooling | Air |
