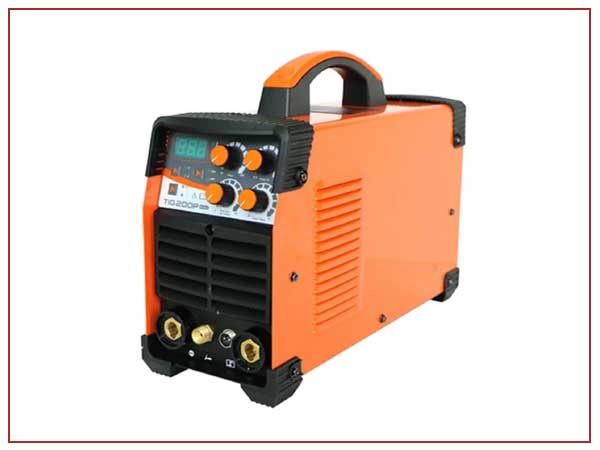

TIG Welding Machine Manufacturers in Pune, Suppliers, Dealers, Distributors and Exporters in Pune Maharashtra
Swissweld is one of the best TIG Welding Machine Manufacturers, Suppliers, Exporters, Dealers and Distributors in Pune, Maharashtra, is offering leading technologital, high performance advance TIG welding machines at reasonable price, which are usually used for creating high-quality and spatter-free welds for materials such as stainless steel, aluminium and nickel alloys.
This kind of welding process usually uses a tungsten electrode and inert gas for creating a controlling arc that melts metal and joins pieces together. We have used strong quality materials such as steel and aluminum and components such as wires, transformers and capacitors, which makes overall performance smoother. We offer this machine in various capacities ranging from TIG 250 Amp to 600 AMP as per requirement. Let’s check out its all types, features and applications one by one!
How TIG welding machine works?
As leading Manufacturers, Suppliers, Dealers, Distributors and Exporters Our offered advanced, reliable TIG welding machine is a commonly used and highly demanding machine due to its strong and accurate quality of welds in Pune Maharashtra. It creates an arc between a tungsten electrode and the metal being welded to join the pieces together. The tungsten electrode is basically connected to the negative terminal, and the workpiece is attached to the positive terminal to create a high-quality spark. The argon and helium inert gas is used, and it protects from oxidation and chemical reactions.
Types of TIG Welding Machine Manufacturers:
Being the best single phase TIG welding machine manufacturers, suppliers exporters, dealers and distributors in Pune and Maharashtra, we are offering multiple types of machines as per handling capacity and power, such as:
- Swiss TIG 250 Amp: This is our primary and commonly used TIG welding machine, which has a power output of 250 Amps and particularly welds materials such as aluminum, stainless steel and mild steel. We have added new inverter technology to this machine, which increases the efficiency, and installed a new digital control panel for easier adjustment and controlling. These are highly used in automotive repair, artistic welding and HVAC manufacturing.
- Swiss TIG 400 Amp: For giving high quality and stronger welding to thick stainless steel, aluminium and other alloys, our Swiss TIG 400 Amp is highly used. It has a power output of 400 amps and approximately 60-80% at maximum output. For controlling the overall temperature of the machine while working on major tasks, we have added an improved cooling system and pulse functionality for better control over heat.
- Swiss TIG 600 Amp: We offer this kind of welding machine for handling heavy-duty applications including stainless steel, titanium and exotic metals that require deep welding. It has a power output of 600 amps with added advanced pulse control for managing heat input, especially in thin materials. The high-frequency start in this welding machine helps reduce tungsten contamination and improve performance.
- Pulse TIG Welding Machine 250 Amp: We offer our new advanced and modern series of welding machines, which have adjustable pulse frequencies for optimized welding. It has a power output of 250 amps for handling thin metals such as galvanized steel and aluminum. To increase the performance, we have added multiple built-in sensors in these welding machines for real-time monitoring of multiple processes and to maintain arc stability. These are commonly used in the thin sheet metal fabrication industry, jewellery making and electrical components.
- Pulse TIG 400 Amp: In this machine, we have added extensive control over heat input and penetration technology for simplifying major and heavy tasks. It has a power output of 400 amps and a duty cycle of approximately up to 60-80%. For identifying the actual thickness of the material for proper welding, we have added auto-set features and advanced waveform control for fine-tuning the arc characteristics that can be based on material type and thickness. This machine is commonly demanded in automotive fabrication and industrial manufacturing.
- Pulse TIG 500 Amp: This is our universal machine highly adjustable and suitable for different welding scenarios. It has a power output of up to 500 amps and handles thick and hard metals such as carbon steel and cast iron. For smooth handling of overall operation, we have added advanced cooling technology for maintaining performance during heavy-duty operations. These welding machines are commonly used in the oil and gas pipeline construction and heavy structural steel manufacturing industries.
Technical Specifications of TIG Welding Machine:
We have mentioned below a technical sheet table of our TIG Welding Machine , which gives you detailed information of our each type:
| Specification | Swiss TIG 250 Amp | Swiss TIG 400 Amp | Swiss TIG 600 Amp | Pulse TIG 250 Amp | Pulse TIG 400 Amp | Pulse TIG 500 Amp |
|---|---|---|---|---|---|---|
| Input Voltage (V) | 220V, 1-Phase | 380V, 3-Phase | 380V, 3-Phase | 220V, 1-Phase | 380V, 3-Phase | 380V, 3-Phase |
| Input Power (kW) | 7.8 kW | 15.0 kW | 21.0 kW | 7.5 kW | 14.0 kW | 18.0 kW |
| Output Current Range (A) | 10-250A | 10-400A | 10-600A | 5-250A | 5-400A | 5-500A |
| Duty Cycle (%) | 60% @ 250A | 60% @ 400A | 60% @ 600A | 60% @ 250A | 60% @ 400A | 60% @ 500A |
| No Load Voltage (V) | 65V | 65V | 75V | 60V | 70V | 70V |
| Welding Type | TIG, MMA | TIG, MMA | TIG, MMA | TIG (Pulse), MMA | TIG (Pulse), MMA | TIG (Pulse), MMA |
| Pulse Frequency Range (Hz) | N/A | N/A | N/A | 0.5-500 Hz | 0.5-500 Hz | 0.5-500 Hz |
| Pulse Duty Ratio (%) | N/A | N/A | N/A | 10-90% | 10-90% | 10-90% |
| AC/DC Capability | DC | DC | DC | DC | DC | DC |
| Ignition Type | HF Start | HF Start | HF Start | HF Start | HF Start | HF Start |
| Arc Force Adjustment | Yes | Yes | Yes | Yes | Yes | Yes |
| Post Flow Time (s) | 0-10 seconds | 0-10 seconds | 0-10 seconds | 0-10 seconds | 0-10 seconds | 0-10 seconds |
| Gas Pre-Flow Time (s) | 0-1 second | 0-1 second | 0-1 second | 0-1 second | 0-1 second | 0-1 second |
| Cooling System | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
Benefits of TIG Welding Machine:
As a former single phase TIG welding machine suppliers and exporters in Pune and Maharashtra, we have added new functions and technological updates in our machine gives you multiple benefits such as:
- Accurate Control: We have added a new technology called Inverter Technology in our single phase TIG welding machine, which helps for accurate welding over lightweight and thin metals such as stainless steel and aluminum. It controls overall heat input and arc, making it ideal for thin welding. Due to this function, this machine is used in the automotive and aerospace industries.
- All-Position Welding: The new technology in our machine called pulsed TIG welding can allow the user to alternate between high and low currents in rapid succession and control the heating and cooling aspects. This feature helps for using this machine in all-positioning such as flat, vertical and overhead and can be used in multiple applications such as construction, shipbuilding and automotive industries.
- Digital Interference and Smart Control: To improve the performance and easy-to-use function, we have added a big touchscreen display in each and every machine. The updated software helps for the smooth functioning of each task without any lagging. The new programmable features help for modifying the software as per requirement and need.
- Advanced Cooling System: The new sensors are connected to our TIG Welding machine, which helps control the excessive heat and prevents it from catching fire or machine failure. We have added liquid-cooled technology and advanced intelligent fan control, which can maintain the optimal temperature and extend the machine's life.
Applications of TIG Welding Machine:
Being one of the best TIG Welding Machine dealers and distributors in Pune and Maharashtra, our all machines are applied in multiple applications such as:
- Aerospace industry for high-precision welds
- Automotive exhaust systems and chassis fabrication
- Welding thin sections of stainless steel
- Manufacturing of pressure vessels and tanks
- Food and beverage equipment fabrication welding
- Welding of medical devices and instruments
- Jewelry and artistic metalwork with precision
- Repair of aluminum aircraft components and parts
- Fabrication of chemical processing equipment
- Shipbuilding and marine applications for durability
- Bike and motorcycle frame construction welding
- Nuclear power plant piping and vessel fabrication
As leading TIG Welding Machine manufacturers in Pune, Maharashtra, we are offering one of the best TIG welding machines at affordable price, which is made with new technological updates and made with strong quality materials. This machine uses inert gas for welding that gives accurate welding over thin metals for increased productivity. For more information, contact us today!
